Electronic Manufacturing & Engineering Services
High-reliability PCB fabrication, assembly, cable harnessing, and design solutions.
PCB Fabrication
Expert PCB fabrication is a key building block for all electronic products. We as a single source EMS provider, are committed to provide better manufacturability and reliability. With our strategic partnership with world’s leading PCB fabricators, we are set to make production cost effective with high quality.
Ananya SIP's broad range of PCB fabrication options include:
PCB fabrication up to 60 layers
Board thickness ranging from 0.015” to 0.500”
Copper weight from 12 microns (3/8 oz.) to 343 microns (10 oz.)
- Panel sizes up to 31” x 52”
- Support for large form factor and high-aspect ratio backplanes
- Embedded passives (ZBC™, Buried Capacitance®, Annular Buried Resistance technologies)
- Use of high-performance materials and composites
- Signal-integrity modeling for enhanced performance
- High-speed 10 Gbps capability through innovative engineering
- Fabrication of Rigid-Flex-Rigid Boards
Circuit Board Assembly
Ananya SIP offers PCBA services for:
Surface Mount Technology
By employing state of the art printers, high speed fully automatic Pick & Place machines and reflow ovens, Ananya SIP achieves industry standards and beyond in accurate placement of surface mount devices.
With many years of experience working with BGA, UBGA, CSP and small profile passives down to and including 0201, the PCBA team at Ananya SIP offers a cost effective high yield solution to any SMT requirement.
Conventional Leaded Technology
Conventional leaded technology has always held its market share even though there is a growing demand for the SMT based systems. The legacy Prominent Industries Systems designs, Power Electronic Systems are still based on Leaded Technology. The Production team at Ananya SIP is a group of trained engineers with impeccable quality consciousness in mounting leaded components.
Ananya SIP undertakes both manual soldering and automatic wave soldering method depending on the volumes of the requirements. The team at Ananya SIP has decades of experience in producing Prominent Industries systems working on IPC 610 class 3 with high reliability standards of workmanship.
Special Processes
Ananya SIP also offers a variety of less common processes, including the use of high melting point solders, special conformal coating agents, Intrusive reflow and secure enclosure assembly.
ROHS Regulations
Ananya SIP continues to provide full lead based processing for exempt category product, whilst also having invested in lead-free equipment and process controls. At the same time, the assembly team is constantly updated with regulations from time to time.
Selective Wave Soldering
Additionally, Ananya SIP also offers selective wave soldering in assembling boards having multiple ground and power planes, high-current connectors or A-typical distribution of components.
Infrastructure Facilities
Equipped with state-of-the-art machinery and automated inspection systems to ensure absolute quality and reliability:

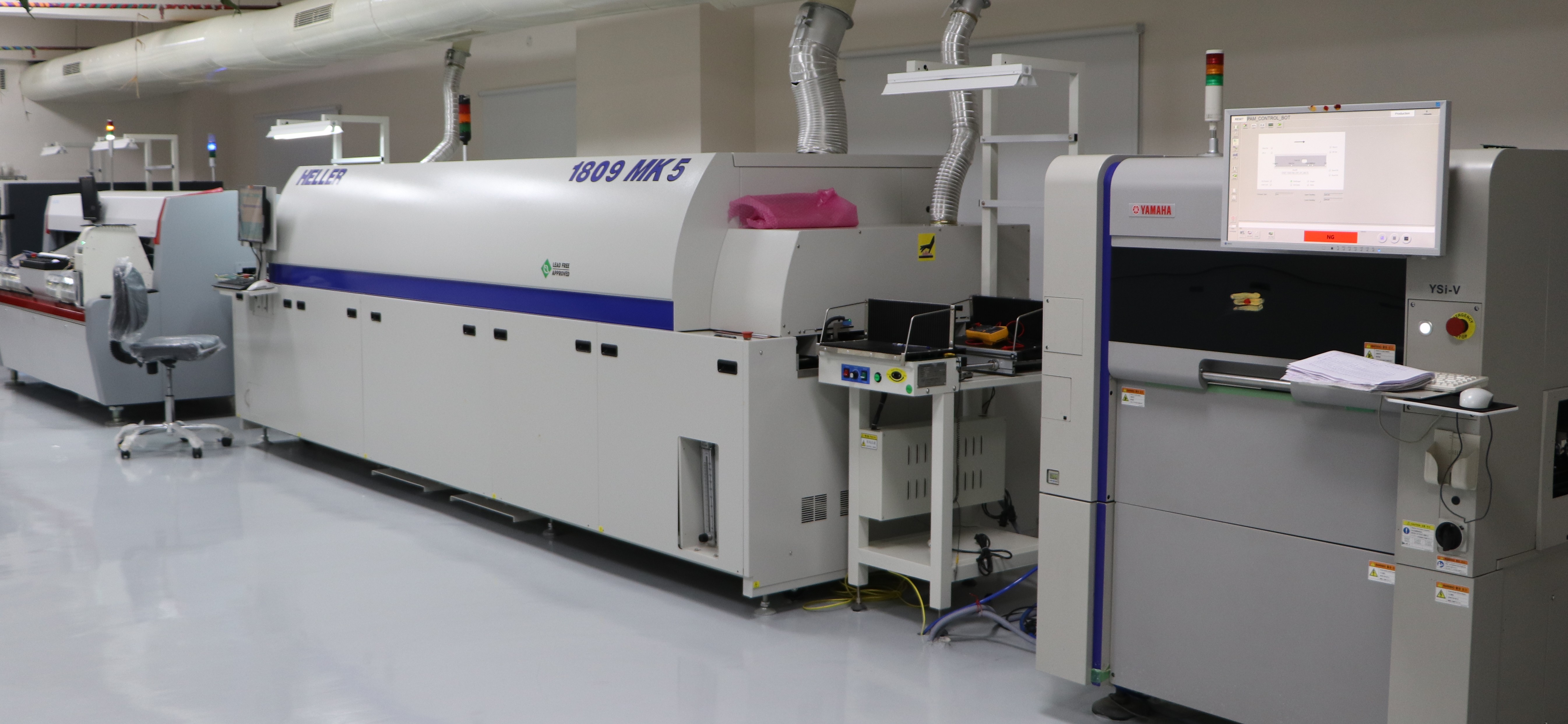

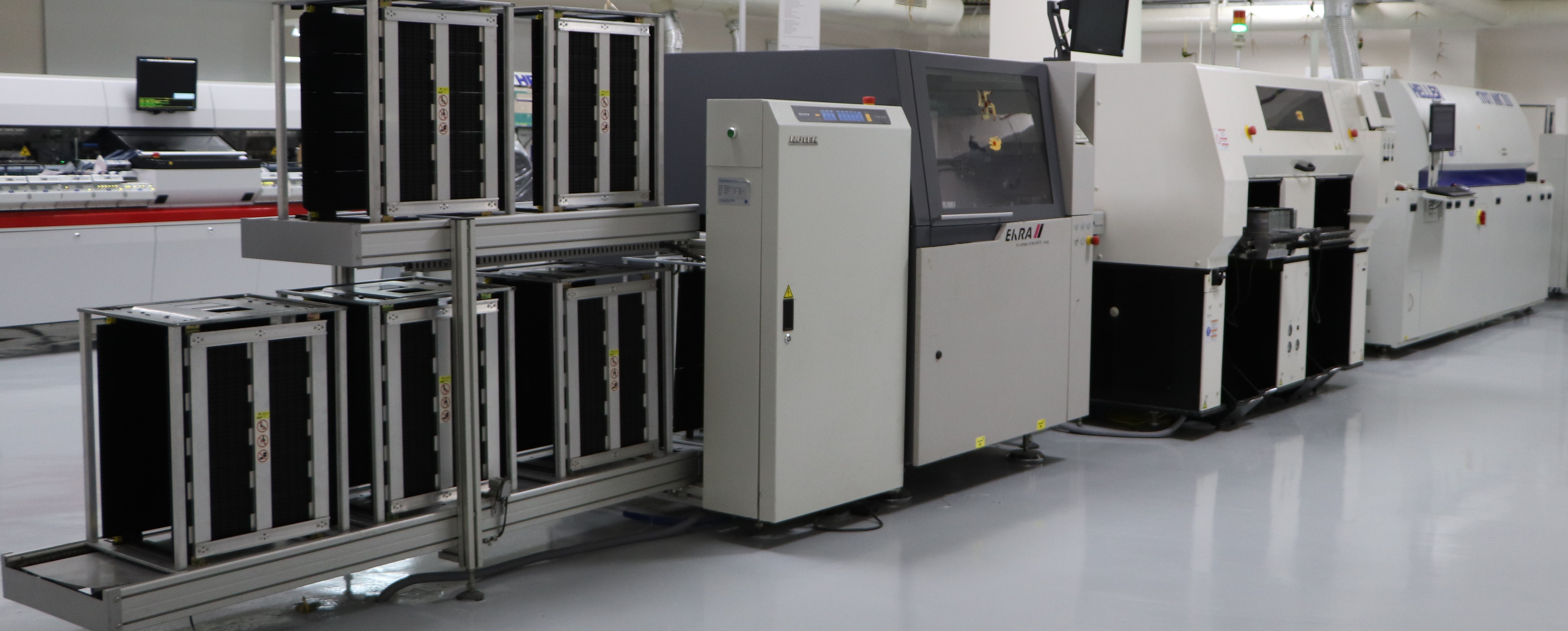

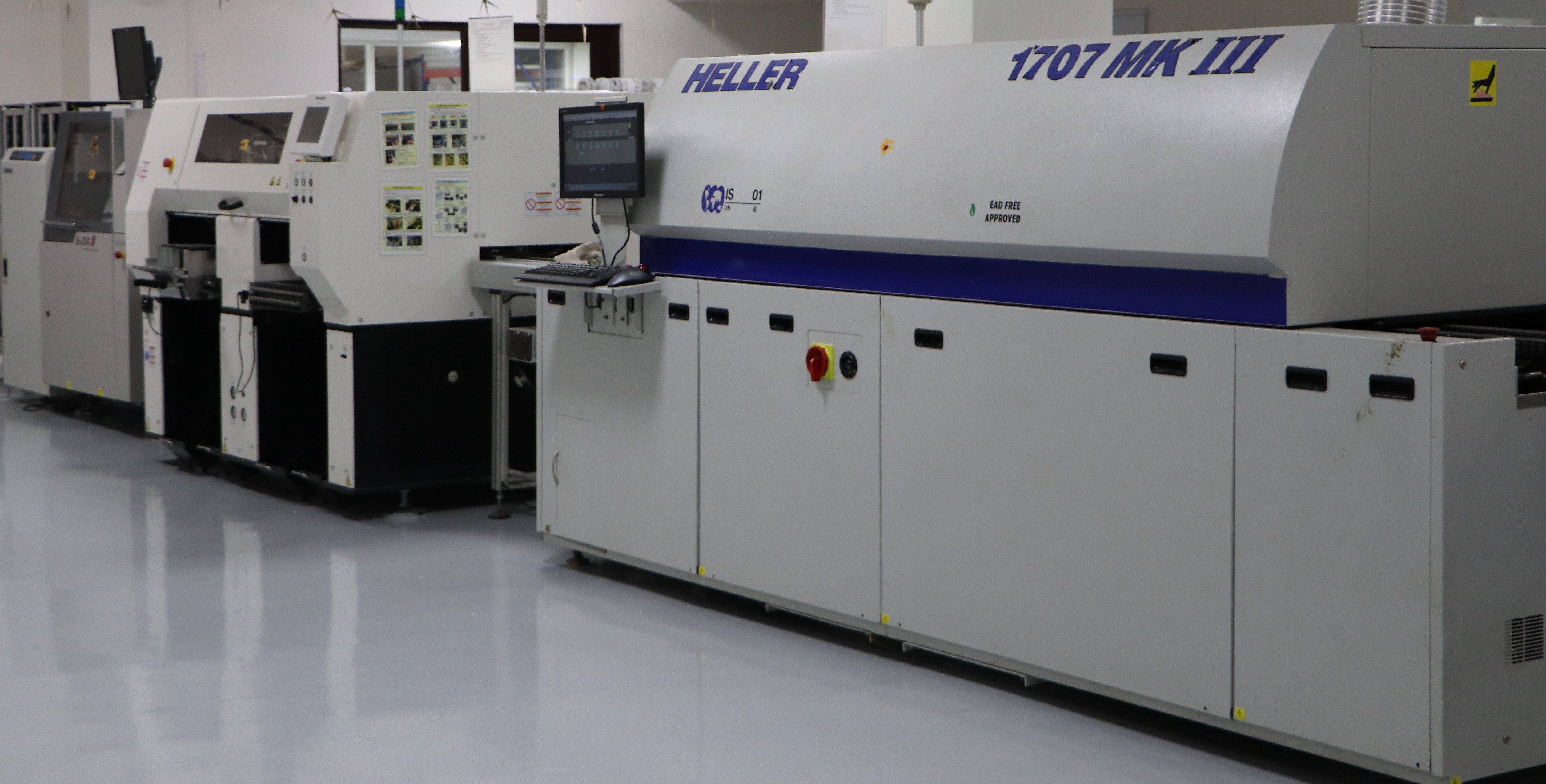

Automated SMT & Reflow Line
High-speed Heller reflow ovens and SMT integration lines for precise component soldering.

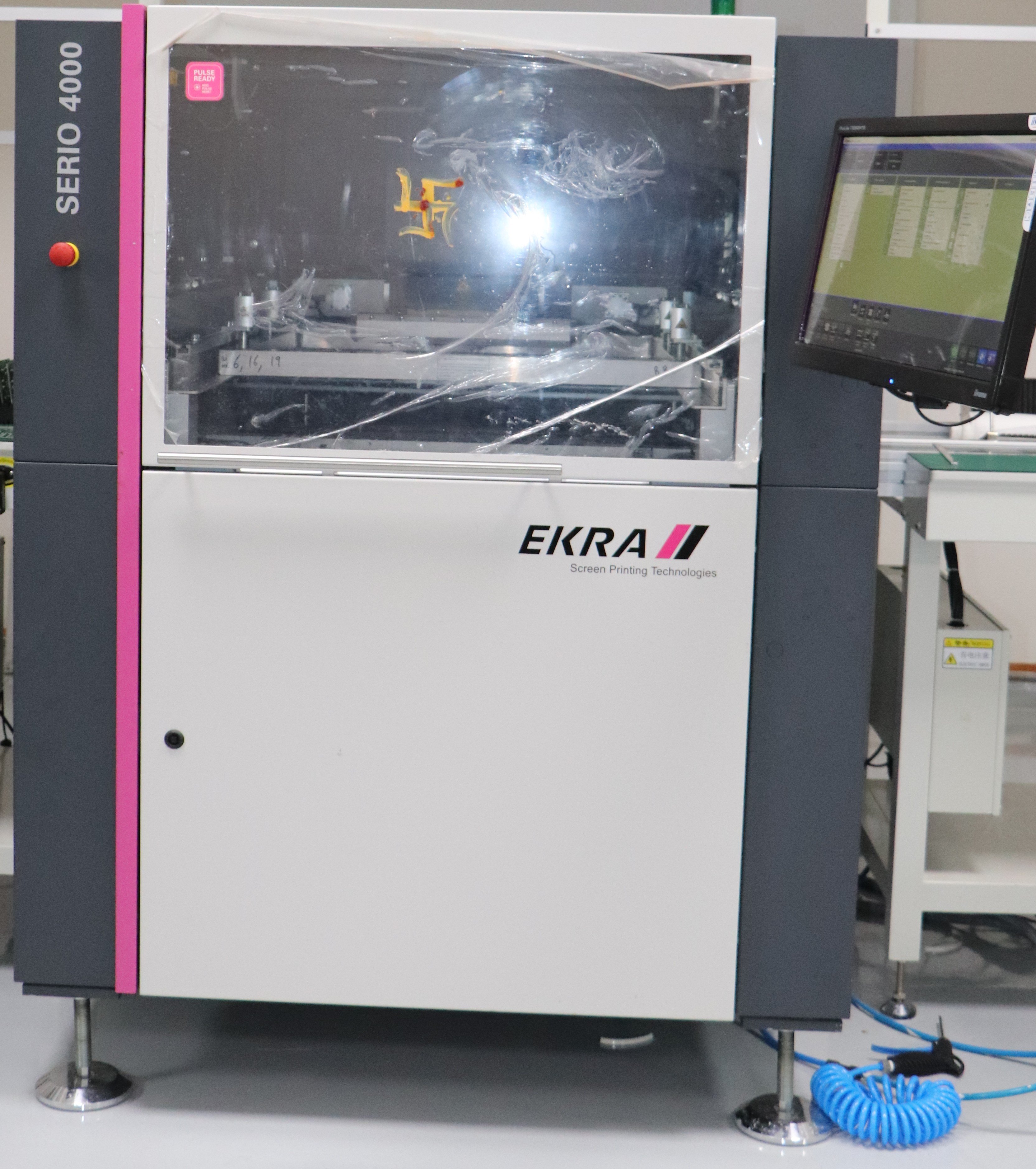

EKRA Solder Paste Printer
Advanced automatic screen printing technology for accurate solder paste deposition.

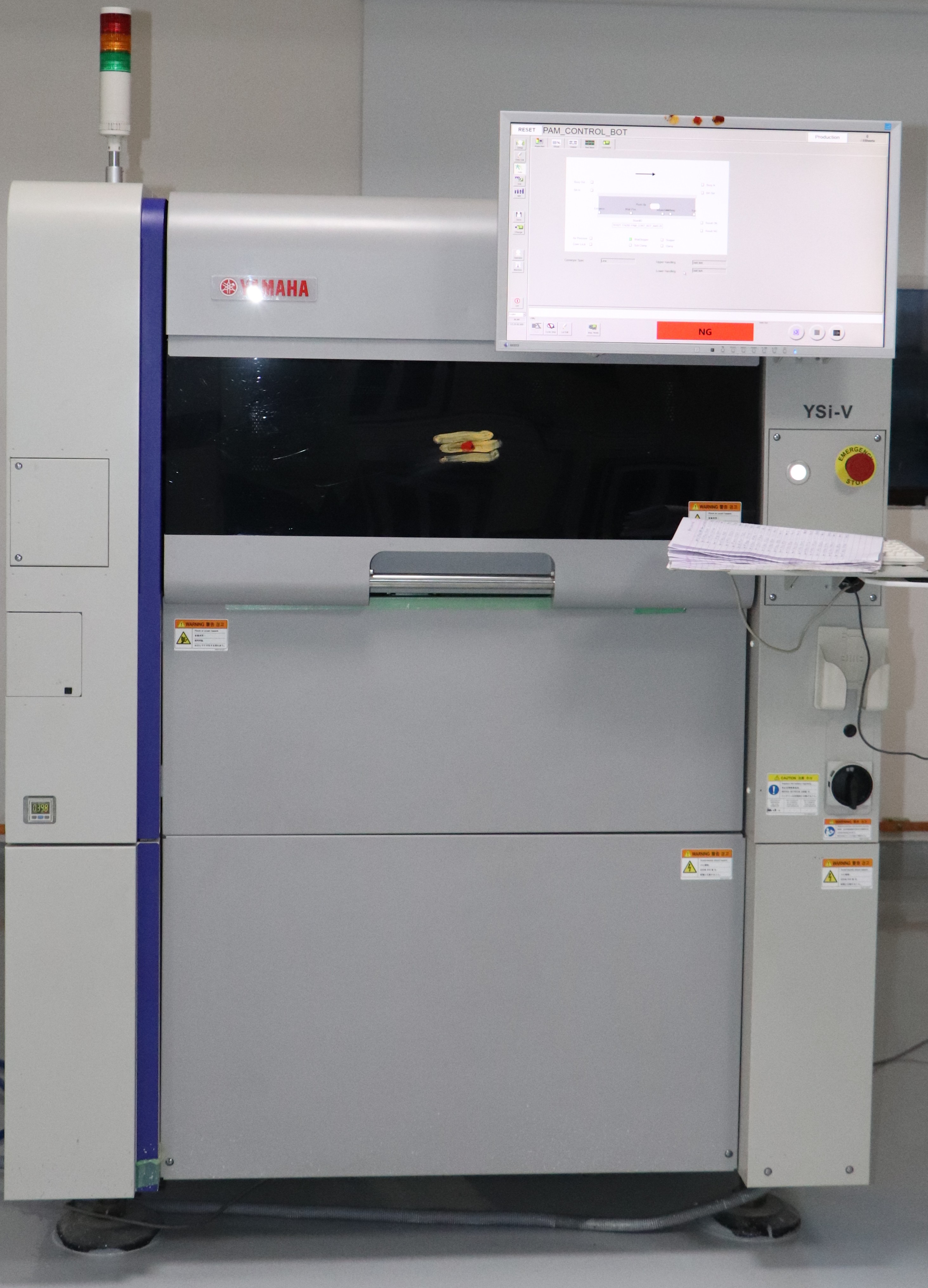

Yamaha YSi-V AOI System
Automated Optical Inspection system for high-speed structural defect detection and quality control.

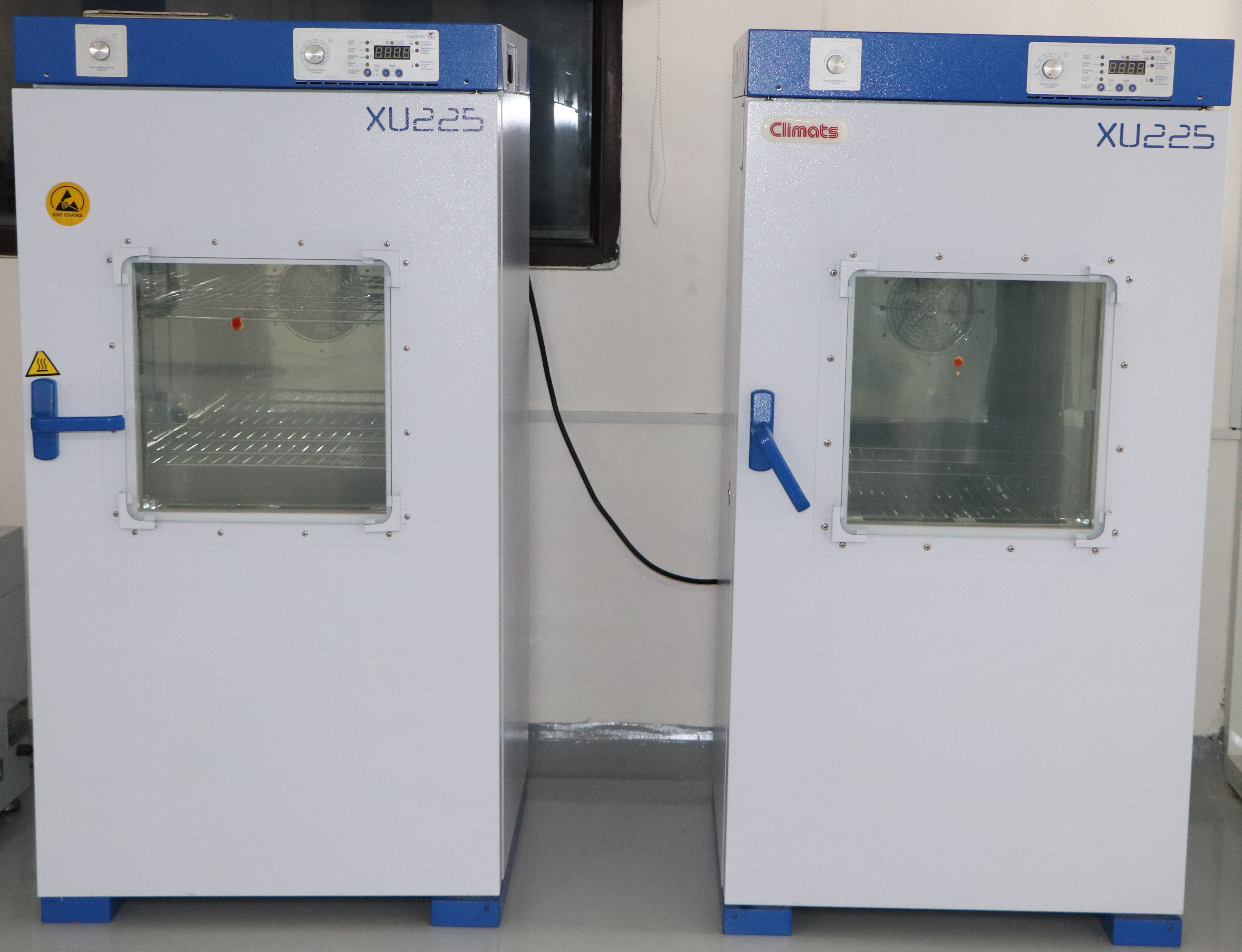

Climats Temperature & Thermal Chambers
Environmental test chambers for thermal cycling and component conditioning under stress.

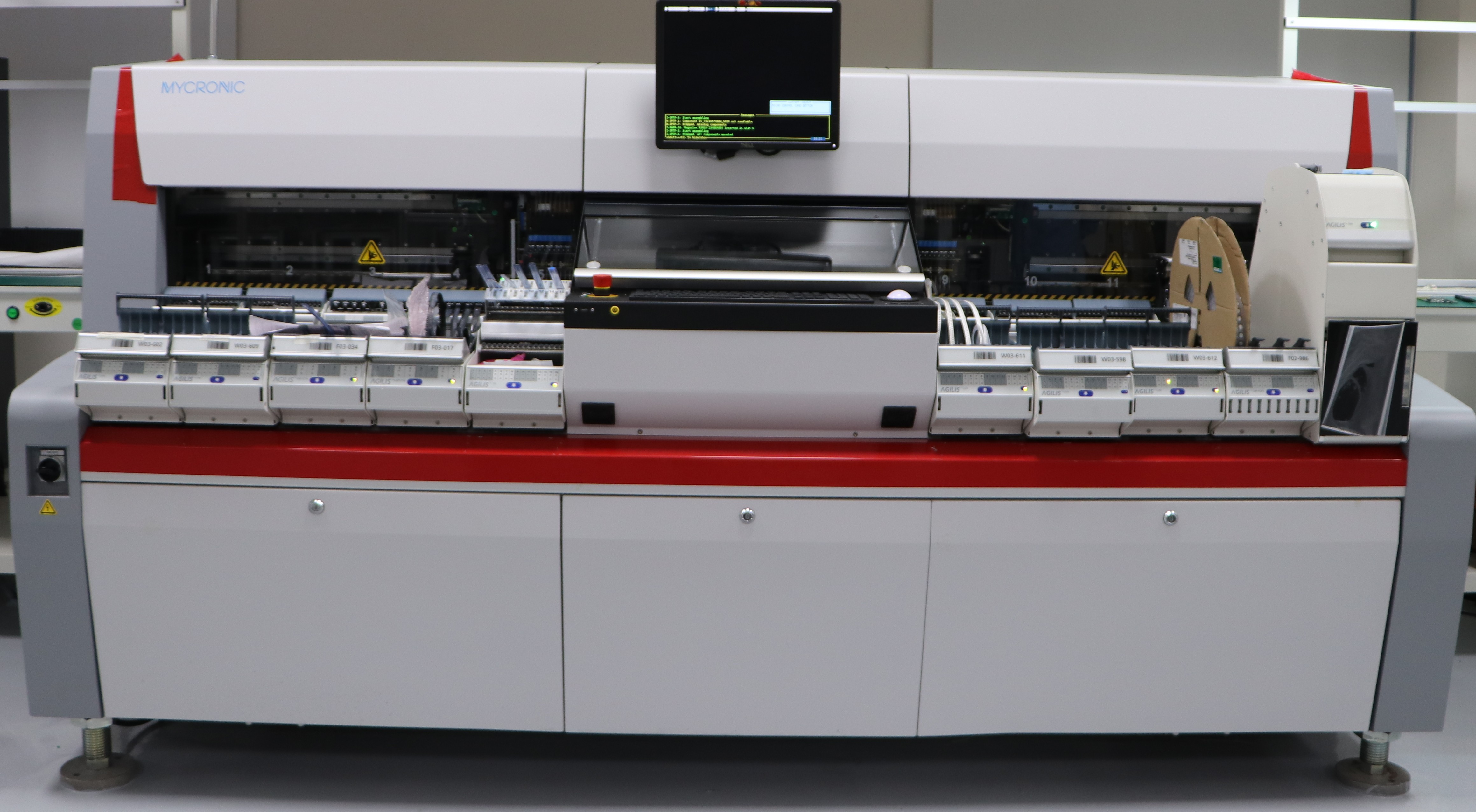

Mycronic High-Precision Placement
Advanced modular pick-and-place equipment for flexible and high-density SMT assembly.

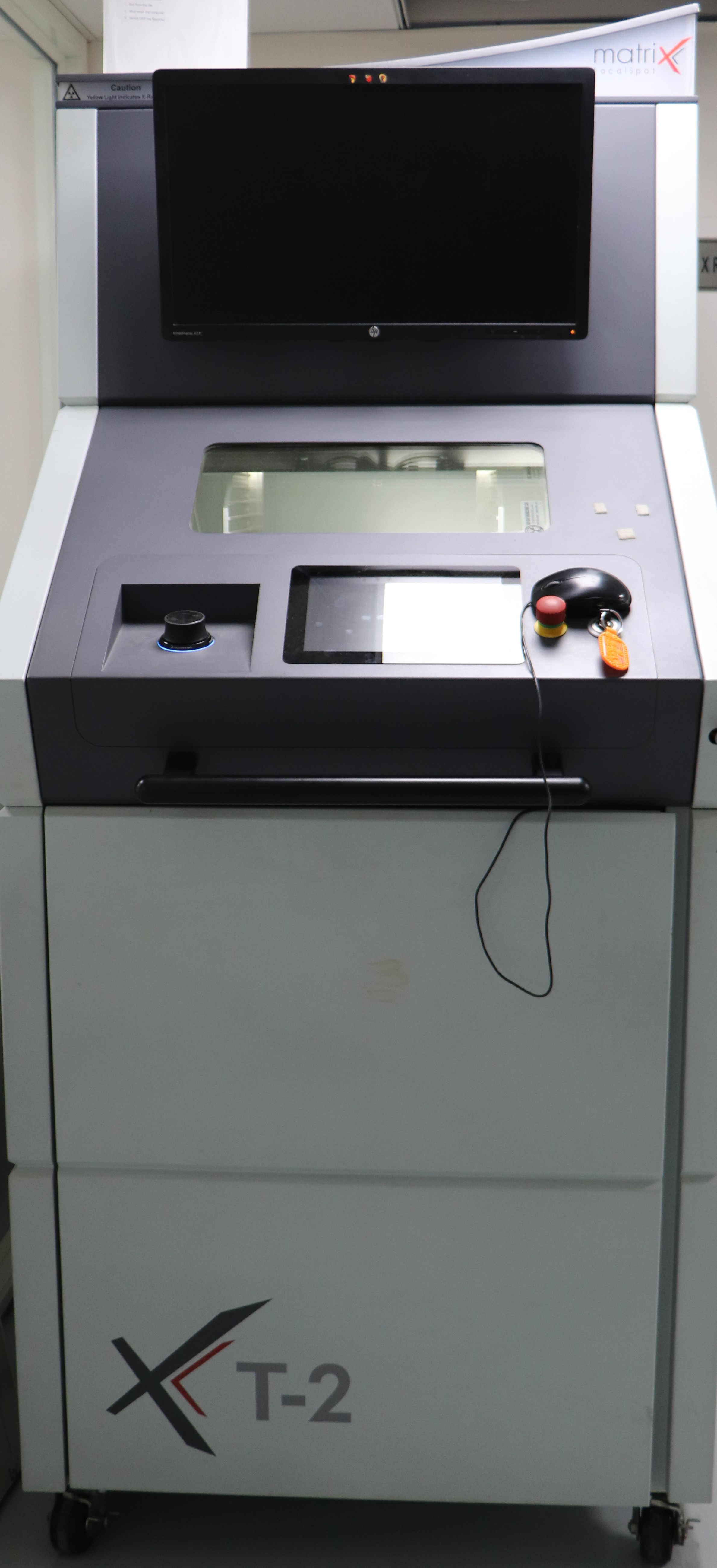

Matrix 3D X-Ray Inspection (X T-2)
High-resolution 3D X-Ray automated inspection system for hidden solder joints, BGAs, and micro-vias.
Design Services & Value Engineering
Ananya SIP provides specialized Design Services for all your manufacturing requirements:
- Thermal Analysis
- Signal Integrity Analysis
- PI Analysis
- Structural Analysis
Cable & Harness Assembly
For a wide range of cost-effective cable harnessing and assembly solutions, Ananya SIP is the most reliable choice. From concept, assembly design and development capabilities, Ananya SIP provides cable assembly services that keep the customer connected with competitive pricing.
The Ananya SIP advantages include:
- High-speed cables
- RF cables
- Optical cables
- Wiring harnesses
- Custom cables
- Molding assemblies
- Computer-generated drawings and documentation
- Tooling and test development
The Cable Harnessing Systems division at Ananya SIP provides cabling solutions to virtually all market sectors. The team is ready and prepared to be quick and help the customer be competitive in today’s global market. Ananya SIP strives to meet the customer’s cost and time-to-market goals and help them move forward in the value chain.
Engineering and NPI services:
- Quick turn to high-volume cable assembly
- Low-cost manufacturing capabilities
- Supplier consolidation
- Deep technology and unparalleled expertise
